Thickness 0.010mm or 10um double side red treated RA Rolled Copper foil For FPC flexible printed circuit board
Quickly details
| . Double side side treated in red with low profile |
| . Thickness: 0.010 mm,18um,35um,70um |
| . Width: Max 520 mm |
| . Length:Max 5000 M |
| . Alloy: T2 |
Features:
| 1. Treated copper foil in red |
| 2. Good Folding with properties suitable for FCCL |
| 3. Excellent etching performance,4,High peel strength |
Application and type:
. Casting and lamination type FCCL
. Super fine pattern FPC
. Chip on flex (COF) for LED

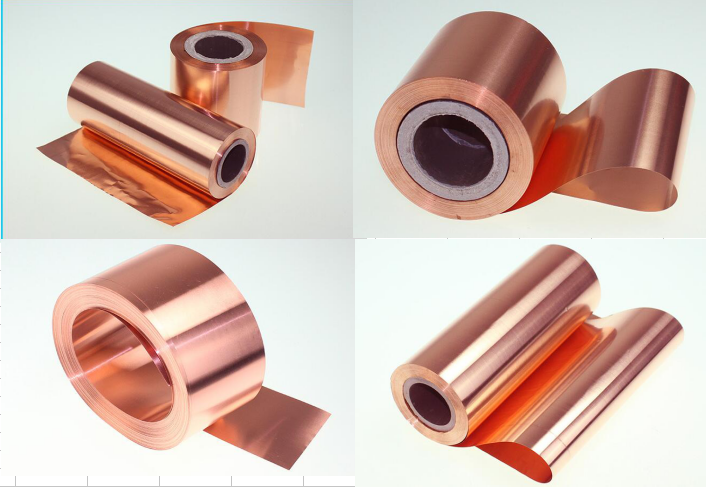

Product picture
FAQ:
Q1: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific
delivery time depends on the items and the quantity of your order.
Q2: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q3: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
All size RA Copper foil TDS for FCCL and FPC
| Thickness | 0.10/0.012/0.018/0.025/0.035mm | Width | ≤520mm | ||||
| Item | Unit | Parameter | |||||
| Thickness | MM | 0.010 | 0.012 | 0.018 | 0.025 | 0.035 | |
| Grade | － | C1100 | C1100 | C1100 | C1100 | C1100 | |
Copper content | % | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | |
| Area Weight | g/m2 | 89±3 | 107±4 | 160±5 | 222±7 | 305±10 | |
| Roughness | (RA) | Um | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| (RZ) | Um | ≤1.7 | ≤1.7 | ≤1.7 | ≤1.7 | ≤1.7 | |
Tensile Strength(MP) | State normal | Mpa | ≥360 | ≥380 | ≥400 | ≥400 | ≥400 |
| State temper (180℃) | Mpa | ≥160 | ≥160 | ≥160 | ≥160 | ≥160 | |
Elongation(%) | State normal | % | ≥1.0 | ≥1.2 | ≥1.4 | ≥1.4 | ≥1.4 |
| state temper l(180℃) | % | ≥7 | ≥8 | ≥10 | ≥10 | ≥10 | |
| MIT | State normal | Time | ≥2400 | ≥2400 | ≥2400 | ≥2400 | ≥2400 |
| state temper (180℃) | Time | ≥2400 | ≥2400 | ≥2400 | ≥2400 | ≥2400 | |
| Peel strength | N/mm | ≥0.8 | ≥1.0 | ≥1.3 | ≥1.35 | ≥1.4 | |
| High temperature oxidation resistance(180℃ 1hour) | － | Qualified | Qualified | Qualified | Qualified | Qualified | |
Remark:Standard Width,520(±1)mm,May according to the customer request tailor.
Packing detail:standard wooden box
|
|
